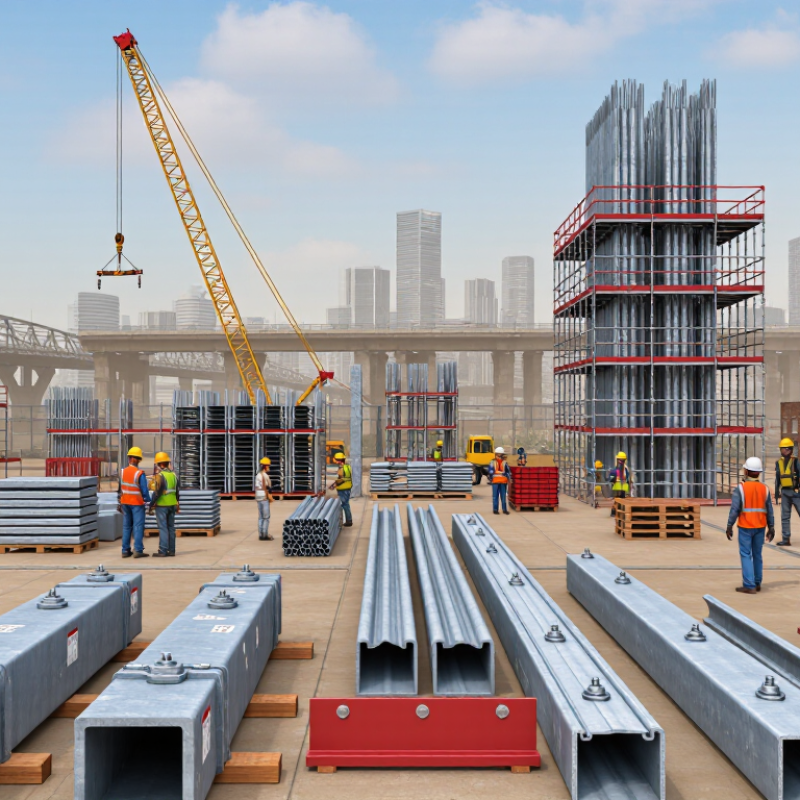

How to Choose Scaffolding Components for Global Projects

Choosing Scaffolding Components for global projects requires more than comparing prices or catalog photographs. Each project faces different wind loads, working heights, transport limits, labor practices, and inspection requirements. OSHA reports that approximately 65% of construction workers perform tasks on scaffolds, with thousands of scaffold-related injuries recorded annually in the United States. These figures make component selection a safety decision, not merely a purchasing decision.

Industry forecasts, including Grand View Research’s scaffolding market analysis, indicate continued growth driven by infrastructure, industrial maintenance, and urban construction. However, market estimates vary. That difference deserves attention. A growing market does not guarantee consistent product quality. Buyers should verify load capacity, material traceability, corrosion resistance, compatibility, and compliance with standards such as EN 12811-1, EN 39, or relevant local requirements. A coupler may look identical across suppliers, yet perform differently under repeated loading or harsh coastal conditions.

Simon Hughes, a technical director associated with the National Access and Scaffolding Confederation, has emphasized a practical principle: “Good scaffolding begins with good planning.” That principle applies directly to Scaffolding Components. Start with the structure, climate, workforce, and dismantling sequence. Then select frames, tubes, couplers, base jacks, platforms, guardrails, and access systems as one coordinated assembly.

Small details matter. Wet platforms, damaged threads, missing pins, and mixed systems can create serious weaknesses. This is where experience matters most. No checklist fits every country or project. Even experienced teams should pause, review assumptions, and obtain competent engineering advice before shipment.

How to Choose Scaffolding Components for Global Projects

Define Project Loads: EN 12811 Classes Range from 0.75 to 6.0 kN/m²

How to Choose Scaffolding Components for Global Projects

Define Project Loads: EN 12811 Classes Range from 0.75 to 6.0 kN/m²

Load classification should guide every scaffolding decision. EN 12811-1:2003 defines six uniformly distributed load classes: 0.75, 1.5, 2.0, 3.0, 4.5, and 6.0 kN/m² The highest class equals roughly 612 kilograms per square metre under static loading. This figure is not a simple storage allowance. Workers, tools, bricks, mortar, impact, and uneven placement all affect the design. A 3.0 kN/m² platform may suit light construction work, but masonry activities can demand a higher class.

Site experience shows that loading assumptions often become vague during schedule pressure. I still recheck them against the method statement and actual materials. EN 12811 requires attention to working platforms, access, guardrails, and stability. OSHA guidance also requires scaffold components to support their own weight and at least four times the maximum intended load. Local rules may differ, so engineers should verify the project jurisdiction. The ILO’s 2023 estimates recorded about 2.93 million work-related deaths worldwide, reinforcing the need for disciplined risk control.

Tips: Weigh common material pallets. Mark storage zones clearly. Keep heavy loads near supported points. Record the selected load class before installation. Do not treat a higher class as permission for uncontrolled stacking. Wind exposure, bay length, tie spacing, and ground settlement can change the final design. A rushed selection may pass a drawing review, yet fail in daily use. That deserves another check.

Assess Site Risks: Wind, Seismic Exposure, Climate, Access, and Ground Bearing

Choosing scaffolding components for global projects begins with the site, not the catalogue. Wind exposure deserves careful measurement at the actual elevation. Coastal gusts, open farmland, and tower gaps can create different pressures. The World Meteorological Organization reported 2023 as the warmest year recorded, with more frequent climate extremes. That evidence supports adjustable tie spacing, stronger bracing, and weather-resistant components in exposed locations.

Seismic exposure changes the load path. The U.S. Geological Survey records roughly 500,000 detectable earthquakes each year, although only a small proportion cause damage. A project team should review local hazard maps, soil conditions, and expected ground movement. Swivel couplers, positive locking systems, and continuous bracing can reduce unwanted movement. Yet a stronger component cannot correct poor anchorage. That part is often underestimated.

Ground bearing and access are equally practical risks. Weak fill, saturated soil, or buried services may require sole boards, base plates, or engineered support frames. The International Building Code and EN 12811-1 provide useful design references, but local requirements still control. Measure bearing capacity before delivery, not after settlement appears. Narrow streets may require smaller frames, manual handling plans, and modular sections. I have seen access assumptions fail when one parked vehicle blocked the intended route. Recheck the plan with workers on site. Their criticism may be inconvenient, but it is valuable.

Compare Compliance Systems: EN 12811, OSHA 1926, and AS/NZS 1576

Choosing scaffolding components for a global project starts with the governing compliance system. EN 12811 emphasizes performance, stability, and design loads for temporary works. OSHA 1926.451 sets U.S. requirements for capacity, access, fall protection, and competent-person inspections. AS/NZS 1576 addresses Australian and New Zealand scaffold design, components, and safe use. These systems overlap, but they are not interchangeable. A coupler approved under one framework may still fail another system’s testing or documentation needs.

OSHA’s Scaffold Safety Fact Sheet estimates 4,500 scaffold-related injuries and 50 deaths each year in the United States. That figure is older, but it remains a useful warning. On site, small details matter: base plates on uneven ground, missing ties, overloaded platforms, or mixed components. EN 12811 load classes help engineers match platforms with intended service loads. AS/NZS 1576 also requires attention to duty, configuration, and erection practice. The difficult part is often coordination, not steel. Drawings can look compliant while installation quietly drifts.

Tips: Build a compliance matrix before procurement. List load class, tube dimensions, coupler tests, guardrail geometry, access method, and inspection records. Ask a local engineer to verify the design against the project jurisdiction. Keep traceable certificates with each delivery. Do not assume “international” means accepted. It may not. Photograph the first installed bay, then review it with the competent person. Check current standards directly, because requirements and interpretations can change.

How to Choose Scaffolding Components for Global Projects — Compare Compliance Systems: EN 12811, OSHA 1926, and AS/NZS 1576
Compliance Dimension EN 12811-1: Temporary Works Equipment — Scaffolds — Performance Requirements and General Design OSHA 29 CFR 1926 Subpart L — Scaffolds AS/NZS 1576 Series — Scaffolding
Primary regulatory approach European performance-based system Establishes performance requirements and general design principles for access and working scaffolds. National implementation may also require local regulations and harmonized product requirements. United States workplace regulation Sets mandatory minimum requirements for employers, employees, scaffold users, and scaffold components under federal OSHA construction rules. Australia–New Zealand standard series Provides requirements for the design, construction, inspection, alteration, maintenance, and use of scaffolding. Project requirements may also be controlled by local legislation and site rules.
Typical application General access and working scaffolds, including modular and tube-and-fitting systems, where structural performance, stability, access, and use conditions must be defined. Supported scaffolds, suspended scaffolds, mobile scaffolds, aerial lifts, and other scaffold-related equipment covered by Subpart L. General-purpose scaffolding and associated components, including access platforms, working platforms, couplers, prefabricated systems, suspended scaffolds, and special-purpose arrangements covered by the applicable part.
Load classification or minimum load basis Uses scaffold load classes with uniformly distributed working loads from 0.75 kN/m² to 6.00 kN/m² for Classes 1 through 6. The selected class should reflect workers, materials, equipment, and operations. Each scaffold and scaffold component must support its own weight plus at least 4 times the maximum intended load. Platforms must support intended loads without failure or excessive displacement. Design loads depend on the scaffold type, duty classification, platform arrangement, height, environmental conditions, and the applicable part of AS/NZS 1576. The duty rating must be selected for the actual work and stored materials.
Platform width and usable working area Width is selected using defined width classes and the intended use. The platform must provide sufficient room for personnel, materials, access, and safe movement; the scaffold configuration must be checked against the selected load class. Each platform and walkway generally must be at least 18 in (457 mm) wide, subject to specific exceptions. Platforms must be fully planked or decked within the guardrails unless an allowed exception applies. Platform dimensions and clearances are determined by the scaffold duty, configuration, access requirements, and applicable construction provisions. The selected platform components must match the specified system and duty classification.
Guardrails and edge protection Requires collective protection against falls, including guardrails, intermediate protection, and toe-board or equivalent arrangements where required by the scaffold design and risk assessment. Dimensions are determined by the applicable configuration and national rules. Toprails are generally required at 38–45 in (0.97–1.14 m) above the platform. Midrails are generally required approximately halfway between the toprail and platform. Toeboards or equivalent protection are required where falling-object hazards exist. Requires compliant guardrails, midrails, toeboards, and other edge protection appropriate to the scaffold arrangement and fall hazard. Component dimensions, strength, and installation details must follow the applicable AS/NZS 1576 requirements.
Access requirements Safe access must be integrated into the scaffold design. Ladders, stairways, ramps, and access openings must be arranged so that users are protected from falls and the access route remains usable under the intended loading. Access must be provided when platforms are more than 2 ft (0.6 m) above or below a point of access. Permitted methods include ladders, stairways, ramps, walkways, integral prefabricated frames, and approved personnel hoists, subject to detailed conditions. Access components and access openings must be designed and installed for the intended scaffold type, height, and duty. Stairs, ladders, platforms, and gates must comply with the relevant provisions of the AS/NZS 1576 series.
Stability, ties, and bracing Stability must be verified for vertical and horizontal loads, wind, eccentric loading, erection stages, and service conditions. Ties, anchors, bracing, base supports, and connections are selected from the design calculation and configuration. Supported scaffolds with a height-to-base ratio greater than 4:1 must be restrained from tipping by guying, tying, bracing, or equivalent means. The scaffold must be securely attached to the structure when required by the rule. Stability provisions include suitable foundations, soleplates or base arrangements, ties, braces, anchors, and protection against movement. The required arrangement depends on height, exposure, scaffold geometry, imposed loads, and wind conditions.
Wind and environmental loading Wind actions, exposure, sheeting or containment, working conditions, and out-of-service conditions must be included in the design. Wind effects can substantially change tie spacing, bracing, anchorage, and allowable configuration. Scaffolds must be capable of supporting imposed loads and foreseeable environmental effects. Employers must address high winds, storms, ice, snow, and other conditions that could affect safe use; suspended scaffold work has additional wind-related limits. Wind and other environmental actions must be considered for the location, height, configuration, screening, containment, and service condition. Local wind exposure can require a project-specific engineering design.
Component compatibility Components must be compatible with the designed scaffold system and provide the required structural performance. Mixing components from different systems should be supported by technical documentation and engineering verification. Components must be compatible and capable of supporting the required loads. Mixing manufacturer systems or dissimilar components is permitted only when the resulting scaffold maintains the required structural integrity and compliance. Components must be suitable for the applicable scaffold system and duty. Interchangeability, coupler use, prefabricated frames, planks, ties, and accessories should be confirmed against the relevant part and engineering documentation.
Inspection and competent-person requirements Inspection, maintenance, and control arrangements should be established for erection, alteration, use, adverse weather, impact, and dismantling. National occupational-safety legislation may define the formal inspection interval and responsible person. A competent person must inspect scaffolds, scaffold components, and associated equipment for visible defects before each work shift and after any occurrence that could affect structural integrity. Defective items must be repaired, replaced, or removed from service. Inspection and maintenance must be performed at the intervals and by the responsible persons required by the applicable jurisdiction and standard provisions. Special inspections are needed after alteration, damage, impact, severe weather, or other conditions affecting safety.
Erection, alteration, and dismantling Work must follow the design configuration and an appropriate erection sequence. Temporary stability during incomplete stages, access, fall prevention, component handling, and dismantling must be addressed. Erection, moving, dismantling, or alteration must be performed under the supervision and direction of a competent person. Fall protection is generally required for employees at more than 10 ft (3.1 m) above a lower level, subject to specified exceptions. Erection, alteration, and dismantling must follow the applicable design, sequence, access controls, fall-prevention measures, and site procedures. Special configurations should be supported by competent technical design.
Falling-object protection Toe-boards, brick guards, screens, fans, covered walkways, exclusion zones, or other measures may be required according to the risk, platform arrangement, materials, and project conditions. Toeboards are generally required where people below could be exposed to falling objects. Additional protection may include barricades, debris nets, canopies, screens, or prohibiting access below the scaffold. Falling-object controls must be selected for the work activity and site exposure. Toe-boards, containment, covered access, exclusion zones, or other protective measures may be required by the standard and local safety rules.
Electrical clearance Clearances from electrical conductors must comply with applicable national electrical and occupational-safety requirements. The scaffold design should account for erection, use, dismantling, conductive components, and possible movement. Minimum clearance from energized power lines is generally 10 ft (3.1 m) for lines up to 50 kV, with greater distances required for higher voltages. De-energizing, relocating, or protecting the line may change the applicable control. Electrical clearances must comply with applicable Australian or New Zealand electrical-safety legislation and project controls. Metallic scaffolds should be treated as conductive structures unless the authority having jurisdiction confirms otherwise.
Best component-selection priority Select the load class, width class, platform, guardrail, tie, brace, base, and access components as one engineered configuration. Verify wind, service, and out-of-service conditions. Select components that satisfy the OSHA load factor, platform, guardrail, access, stability, inspection, and electrical-clearance requirements. Confirm whether state-plan or local requirements are more stringent. Select components by the applicable AS/NZS 1576 part, scaffold duty, geometry, wind exposure, access arrangement, and local statutory requirements. Obtain engineering verification for non-standard or mixed configurations.
Global project caution EN 12811-1 is not a universal substitute for national law. Confirm the project country’s occupational-safety rules, product conformity requirements, wind criteria, and inspection obligations. OSHA compliance applies to work within OSHA jurisdiction and may be supplemented by state-plan rules, local regulations, engineering requirements, and client standards. AS/NZS 1576 should be applied together with the applicable Australian or New Zealand legislation, site rules, engineer’s design, and authority requirements. Do not assume automatic equivalence with EN or OSHA criteria.
Technical note: This comparison is intended for preliminary component selection and project planning. The applicable edition, local legislation, engineered design, manufacturer instructions, site conditions, wind exposure, scaffold geometry, and duty classification must be verified before procurement, erection, or use.

Select Safe Geometry: OSHA Requires a 4:1 Height-to-Base Stability Ratio

How to Choose Scaffolding Components for Global Projects

Select Safe Geometry: OSHA Requires a 4:1 Height-to-Base Stability Ratio

Scaffold geometry begins with stability, not convenience. Under OSHA 29 CFR 1926.451(a)(1), a supported scaffold exceeding four times its minimum base dimension must be restrained from tipping. This is a stability trigger, not a design shortcut. A 12-foot-wide base should not support a 48-foot height without approved restraint, engineering review, or both. Site teams should verify base width, tie spacing, ground strength, and load paths before selecting components.

The numbers matter. OSHA’s scaffold safety guidance estimates about 4,500 injuries and 50 deaths annually from scaffold-related incidents. The International Labour Organization also identifies falls from height as a serious construction risk worldwide. These figures support a cautious approach, especially when local rules differ. OSHA requirements apply in the United States; other projects may require EN 12811 or national standards. Mixing systems without checking compatibility can create hidden weaknesses. I have seen drawings look correct while uneven ground changed the real base geometry.

Tips: Measure the smallest base dimension, not the widest point. Use adjustable components only within their certified limits. Check levelness with a calibrated tool. Record tie locations and inspection dates. Ask a qualified person to review unusual heights, wind exposure, suspended loads, and incomplete bracing. Small errors accumulate. The four-to-one ratio is easy to remember, but field conditions remain difficult to predict.

Verify Components: Corrosion Protection, Compatibility, Inspection, and Training

How to Choose Scaffolding Components for Global Projects

Verify every component before it reaches the worksite. Corrosion protection matters most near coastlines, humid zones, and chemical facilities. Check coating thickness, exposed edges, weld areas, and stored materials after transport. A scratched tube may look harmless, yet rust can spread beneath a connection.

Compatibility requires more than matching dimensions. Confirm tube diameter, coupler type, load rating, locking method, and access-platform design. Components from different systems may fit physically but perform differently under movement. Review technical documents, local requirements, and the project’s design calculations. When information is unclear, stop and ask.

Inspection should happen before assembly, during use, and after severe weather. Look for bent tubes, damaged pins, loose boards, missing guardrails, and unstable bases. Record findings with dates and photographs. Training must reflect real conditions, not just classroom theory. Workers should practice tagging, safe access, bracing checks, and emergency reporting. Language differences deserve attention. Simple diagrams often work better than long instructions.

Small gaps matter. I once underestimated how quickly poor storage could damage protective coatings. That judgment needed correction. Experienced supervisors should invite challenge, especially when schedules become tight. A component that passes a visual check may still require measurement or specialist review. Reliability comes from repeated verification, clear records, and people willing to question familiar habits.

How to Choose Scaffolding Components for Global Projects

Verify Components: Corrosion Protection, Compatibility, Inspection, and Training

How to use this chart: EN 12811-1 defines six scaffold load classes with uniformly distributed loads ranging from 0.75 to 6.00 kN/m². Select components, platforms, couplers, and access systems that are verified for the required load class and project conditions.

Global project checks: Confirm corrosion protection for the site environment, verify dimensional and mechanical compatibility between components, document inspections before use and after alterations, and ensure workers are trained in assembly, modification, inspection, and safe loading procedures.

Reference: EN 12811-1, Temporary works equipment — Scaffolds — Performance requirements and general design.
